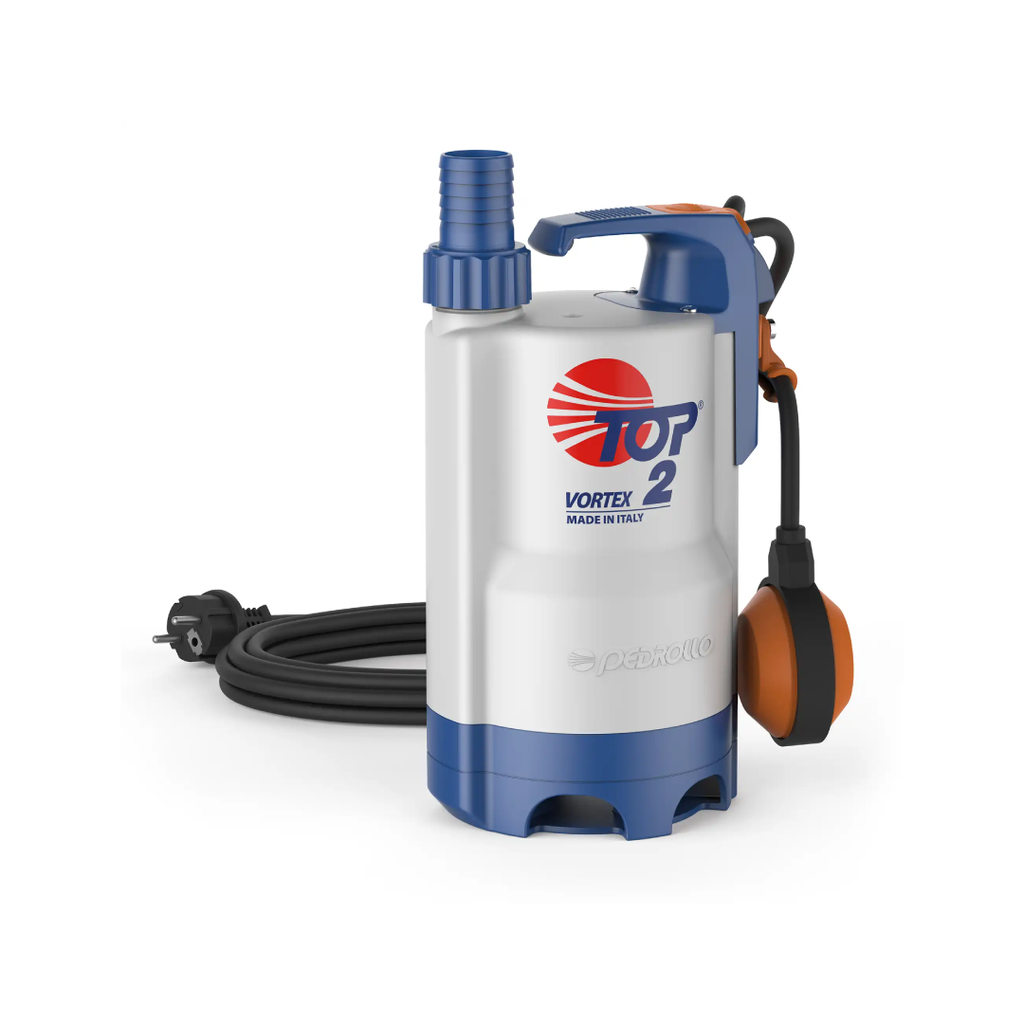

Top 2 Vortex Effluent Pump

TOP-VORTEX pumps are suitable for draining clear water without abrasive particles that will not damage the pump’s components. Construction features ensure user-friendly and safe operation, including motor cooling and a double shaft seal. These pumps are particularly well-suited for domestic applications, including draining dirty water, emptying tanks, managing domestic drains, and clearing sumps, even in the presence of suspended solids of up to 25 mm in diameter.

Flow rate: up to 170 l/min (10.2 m³/h)

Head up: up to 8.7 m

Liquid temperature: up to +40 °C (+90 °C for intermittent service up to 3 minutes)

Capable of processing suspended solids: up to Ø 25 mm

Maximum operating depth below water level: up to 3 m (with an appropriately sized power cable)

Draining capability: 25 mm

Motor: 2 poles

Ingress protection rating: IP 68
